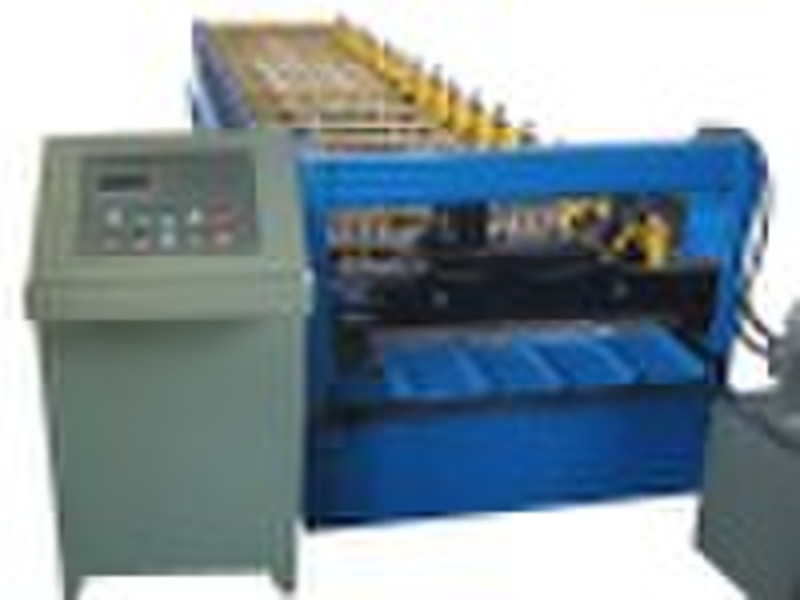

Wall and roofing forming machine
Leo Jin
Contact person
Basic Information
Roll forming machine 1, Components for the Machine The wall and roofing forming line includes in hydraulic decoiler, sheet guiding equipment, roll forming system, cutting equipment, hydraulic station, electric control system and supporter. 2, Technical Parameters Material Spec. Aluzinc, pre-painted coil, galvanized steel Yield strength Q235±50 Thickness 0.40 mm to 0.7 mm Width1000mm Working Speed 10-12 m/min. Power Requirement 380V/3ph/50Hz Main motor power: 5.5Kw Hydraulic station power:2.2Kw Hydraulic Decoiler Max. Capacity: 5000kgs Inner diameter: 480-520mm Max out diameter: 1500mm Max coil width: 1500mm Installation Size About 14X 3.3 X 1.4M Total Weight About 6,000kg
Delivery terms and packaging
Packaging Detail: Plastic bag, wood box, and carton Delivery Detail: 45
Port: Shanghai/Ningbo
