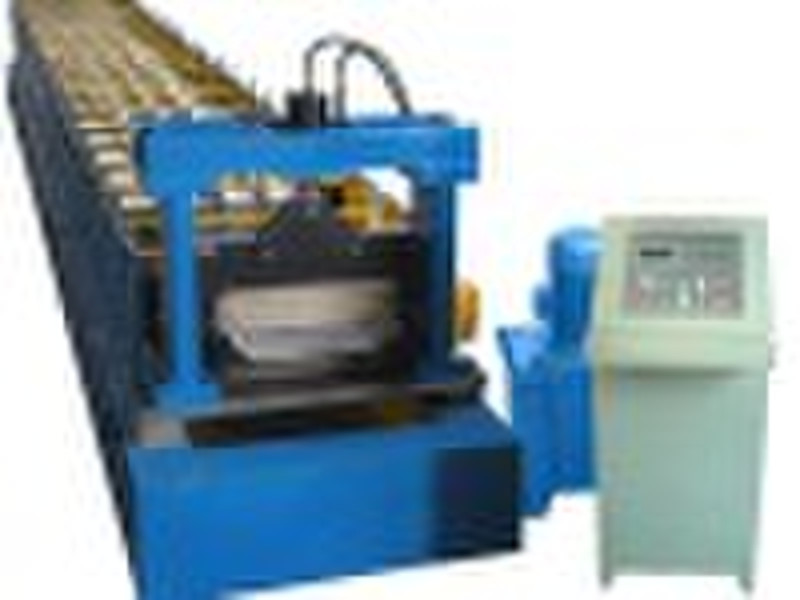

LR-66-470 roll forming machine

Roll forming machine 1, Components for the Machine The wall panel roll forming line includes in hydraulicdecoiler, sheet guiding equipment, roll forming system, cutting equipment, hydraulic station, electric control system and supporters. 2, Technical Parameters Material Spec. Aluzinc, prepainted coil Yield strength Q235±40 Thickness 0.40 mm to 0.7 mm Width 600mm Cover width 470mm Working Speed 10 12 m/min. Power Requirement 380V/3ph/50Hz Main motor power: 5.5Kw Hydraulic station power: 2.2Kw Hydraulic Decoiler Max. Capacity: 5000kgs Inner diameter: 480—520mm Max out diameter: 1250mm Max coil width: 1250mm Installation Size About 14 X 3.3 X 1.4 m Total Weight About 6,000kg
